    High Reliability Power Saving Pipe Roller Cradle For Suspension Use

    Ask Lasest Price
    Brand Name : WINCOO
    Price : $8,900.00/sets 2-29 sets
    • Product Details
    • Company Profile

    High Reliability Power Saving Pipe Roller Cradle For Suspension Use

    WINCOO ENGINEERING CO.,LTD
    Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    Pipeline Roller Cradle is a special hoisting and auxiliary walking equipment used in the lower ditch operation after the completion of pipeline welding.
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    Product Features
    1. Reasonable design, light weight, strong lifting capacity, safe and reliable
    2. The pipe weight isevenly distributed on the circumference of the wire rope roller
    3. Roller bearing adopts bearings with large radial and axial bearing capacity, with sealing, waterproof and sand control functions
    4. The roller can move flexibly and freely to ensure the smooth lower groove of the pipeline
    5. Outside the roller is a special polyurethane hanging wheel with good adhesion and high abrasion resistance, which can effectively protect the anti-corrosion layer of the pipeline.
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    Product Parameters
    Model
    Applicable pipe range(mm)
    Temperature of surroundings
    (℃)
    Total rollers
    Wire rope diameter
    (mm)
    Max lifting
    capacity
    Dimension(m)
    Weight
    (kg)
    HG6-12
    Φ152~305
    -30~+70
    28
    18
    8000
    0.5*0.5*0.5
    450
    HG12-24
    Φ305~610
    -30~+70
    28
    22
    13000
    0.7*0.7*0.8
    590
    HG24-36
    Φ610~914
    -30~+70
    28
    22
    35000
    1.0*1.0*0.8
    1500
    HG36-48
    Φ914~1219
    -30~+70
    28
    30
    45000
    1.4*1.4*1.0
    2200
    HG48-60
    Φ1219~1524
    -30~+70
    28
    30
    55000
    1.6*1.4*1.0
    2900

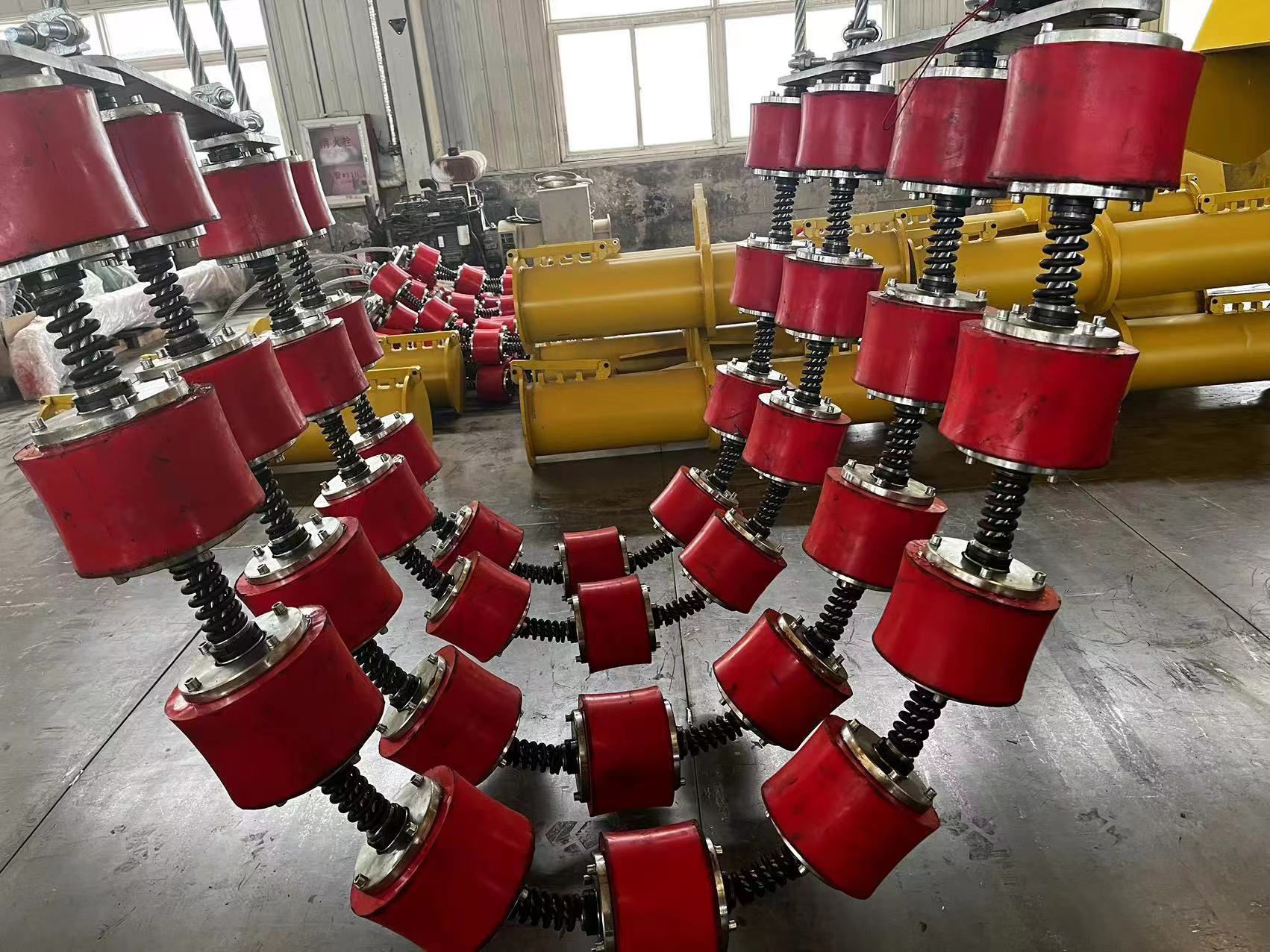

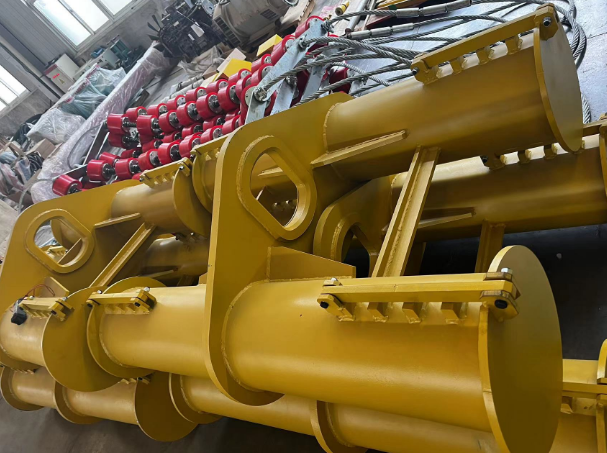

    Product Photos
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

    Our Services & Strength
    We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

    Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

    To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
    High Reliability Power Saving Pipe Roller Cradle For Suspension Use
